Shader Practice 1

According to the tutorial, I made an effect like this:


I didn't notice the date of that tutorial which was uploaded in 2016, it mainly talks about the very original way to write shader codes in this Microsoft Studio:



I realized the function successfully, but I knew nothing about the grammar and the logic in it.In order to code like a TRUE programmer, I went to Kenneth's place(where I actually stay over 10 hours per day, at least 4 days a week) for some explanation.



Then I found I'm so out of dated!!!!!! I'm using the unity in the latest version, but didn't know how to use visual programming pipeline. It's quite a easier way to code without complex grammar and  punctuation. Of course, it's not all about advantages, it makes the program light and clear, but for the logic part, it lacks of those basic default varibles and calculation, which means, you need to consider more logic thinking even more than the traditional coding way. And because of the 'light', sometimes, a simple formula has to be separate into several windows, which makes you distracted.
  Anyway, it is friendly to beginners, but my experience told me it would be better to combine visual windows and the codes.



However, the tutorial is actually harder than I thought, there are so much logic involved when I tried to understand every parameter and varible in the codes. I will show how I ended this up and put some summary below as the study record.



I tried to realize the same effect with pipeline, so I need to know what these numbers mean and how to calculate them. Basically,
1. "IN.vertex.x" is the vector on X axis which is used in adjusting vector on Y axis after sine calculation.
2. "_Time[2]" means time multiply 2, controlling the wave frequency. If I change the number , it will be like


Actually, this part is not the very basic content for bignners, may I should start with graph shader on texture next time.







Comments

Post a Comment

Popular posts from this blog

Thesis Progress - Noise Map

 In another around of research, I found a toolkit and try to use it for my project.  Resource:  https://github.com/mtwoodard/TextureGenerator It's a 3D texture generator designed for raymarching clouds. As we know, the process of my project includes the steps of asset shape then blurred by noise map. Both of them are based on 3D texture. The initial idea was to apply perlin and worely noise, cuz that's the method introduced by many paper. But now, I got this tool which makes it easier.  From last blog, I already had a framework that can drive the 3D texture for some extent. And the noise map makes it pretty close to the final result. Here's what it looks like and it makes me HAPPY. There's an example in the toolkit , I applied it with my 3D texture script. It's not that clear now, then I juggled with some parameters on Blur Material.  Transparency: 0.4 OpacityCorrection: 2.4 Then the outcome shows some really nice work. And each of those plane is attached to tex...
Read more

Thesis Progress - Schedule Check

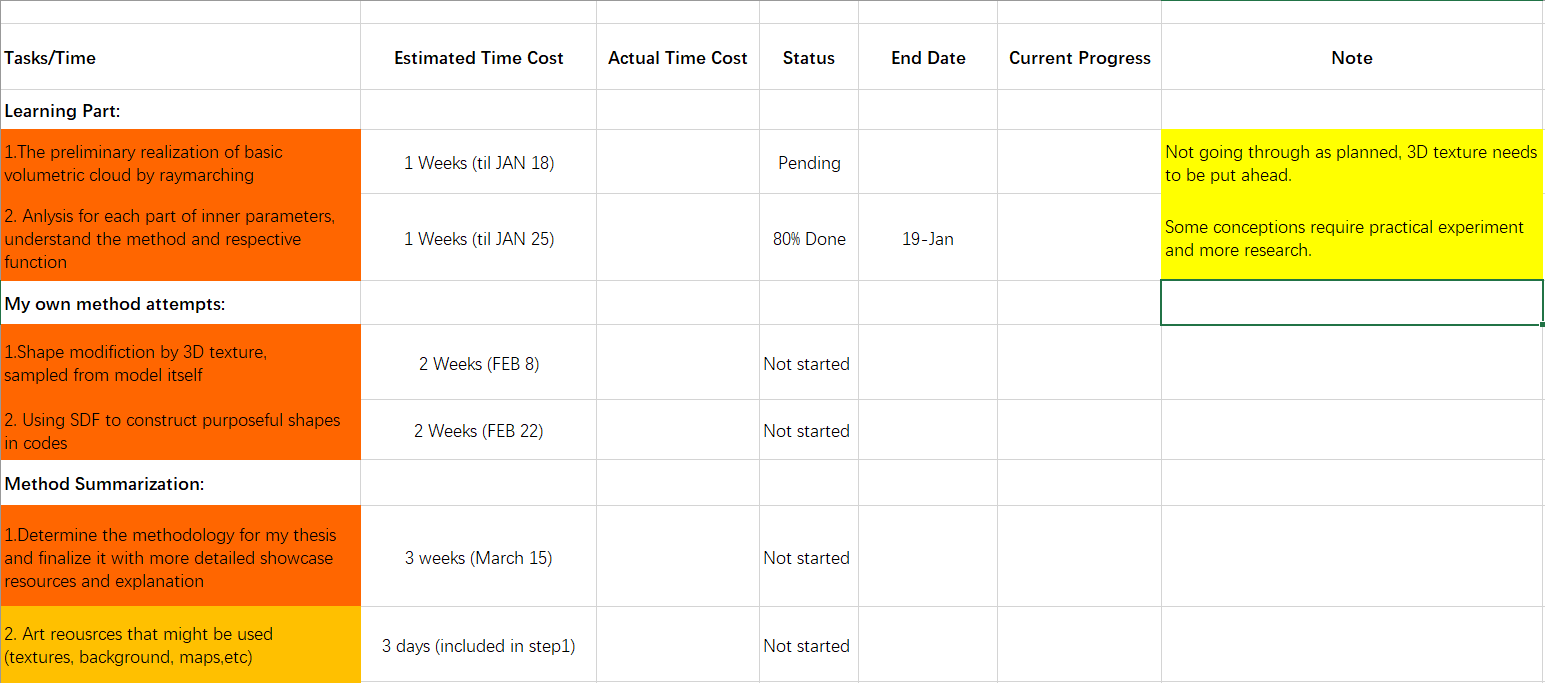

According to the timetable, the goal of this quarter is to finish the first two parts which are the function experiment for thesis project. So far,  the first method I came up with is going through 40% around, still need some more learning on coding to realize modification. At the same time, I'm still trying to find the other ways that might be better or easier, which could replace the current method. The way I make it should be covered by my capability as much as possible.  Other than that, I'm also considering whether I should have a comparsion between my method and traditional way of making 3D texture. It's mostly from the thesis perspective that I need to show the advantage or benefit of my own method. That requires more specific arrangement on timeline.
